Steel Highway Bridge Components and Fabricated Bridge Steel Structures

Product Overview

Steel highway bridge components are not ordinary steel parts. They must work under vehicle loads, vibration, wind, weather exposure, fatigue conditions, corrosion risk, and strict installation requirements. A small fabrication error may affect site assembly, bolt matching, welding work, deck installation, or later bridge performance.

At Zhengcheng, we help you turn bridge steel structure requirements into a practical fabrication and delivery solution. We can support steel girders, box beam components, cross frames, diaphragms, stiffeners, splice plates, deck support members, guardrail support parts, connection plates, anchor-related components, surface treatment, export packing, and installation communication.

For bridge projects, the real pressure is usually not only price. You need accurate dimensions, reliable welding, clear documentation, strong corrosion protection, traceable materials, and packing that allows the site team to find the right component quickly. We help you control these details before shipment, instead of leaving them for the installation site to solve later.

2. Core Advantages

2.1 Fabrication Accuracy for Bridge Assembly

Bridge steel components require stricter control than ordinary building frames. Member length, hole position, splice plate accuracy, stiffener location, welding deformation, and dimensional tolerance all affect site assembly. We can help control these details during fabrication and before shipment.

2.2 Suitable for Highway Bridge and Road Infrastructure Projects

The steel components can be used for road bridges, overpasses, pedestrian bridges, service bridges, temporary bridges, ramp structures, and related road infrastructure. We can fabricate according to the project drawings and coordinate the component scope with your bridge design documents.

2.2 Suitable for Highway Bridge and Road Infrastructure Projects

The steel components can be used for road bridges, overpasses, pedestrian bridges, service bridges, temporary bridges, ramp structures, and related road infrastructure. We can fabricate according to the project drawings and coordinate the component scope with your bridge design documents.

2.3 Strong Welding and Connection Control

Bridge components often depend on welded joints, bolted splices, stiffeners, diaphragms, and connection plates. We can help check welding details, bolt-hole layout, groove preparation, connection plates, and assembly marks before production and shipment.

2.4 Anti-Corrosion Protection for Outdoor Exposure

Bridge steel components are exposed to rain, humidity, temperature changes, road dust, de-icing chemicals in some regions, and long-term outdoor conditions. Surface treatment can include blasting, zinc-rich primer, epoxy coating systems, polyurethane topcoat, metallizing, or hot-dip galvanizing where applicable.

2.5 Clear Marking and Packing for Site Installation

Bridge projects often include many similar but non-interchangeable steel components. Clear marks, bundle planning, packing lists, and loading sequence help reduce site confusion. We can support component marking, packing coordination, container loading, and installation communication.

3. Common Technical Solutions

3.1 Steel Girder Components

Steel girders are commonly used in highway bridge and overpass structures. We can help fabricate plate girders, I-girder components, web plates, flange plates, stiffeners, splice plates, bearing stiffener areas, and related connection parts according to project drawings.

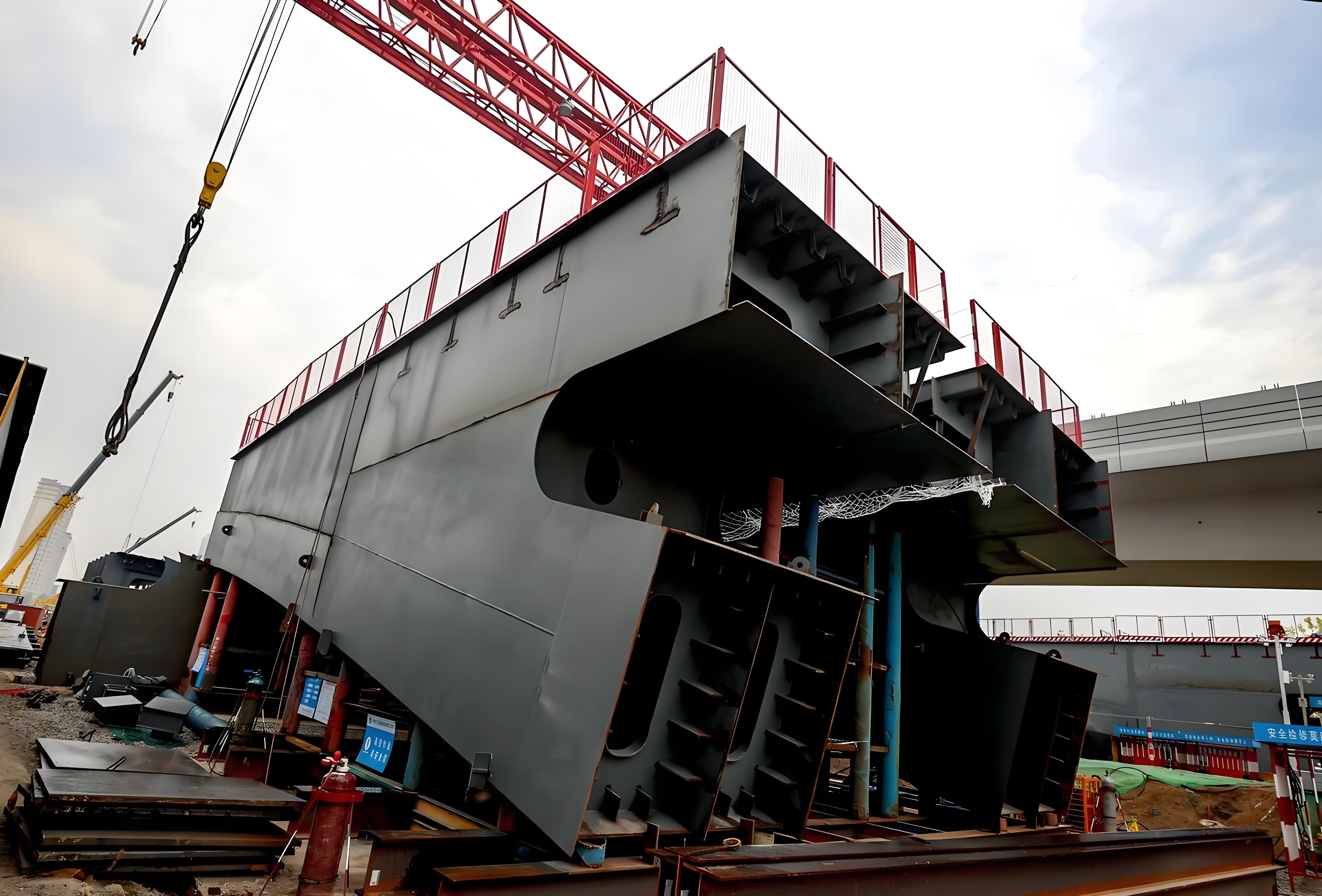

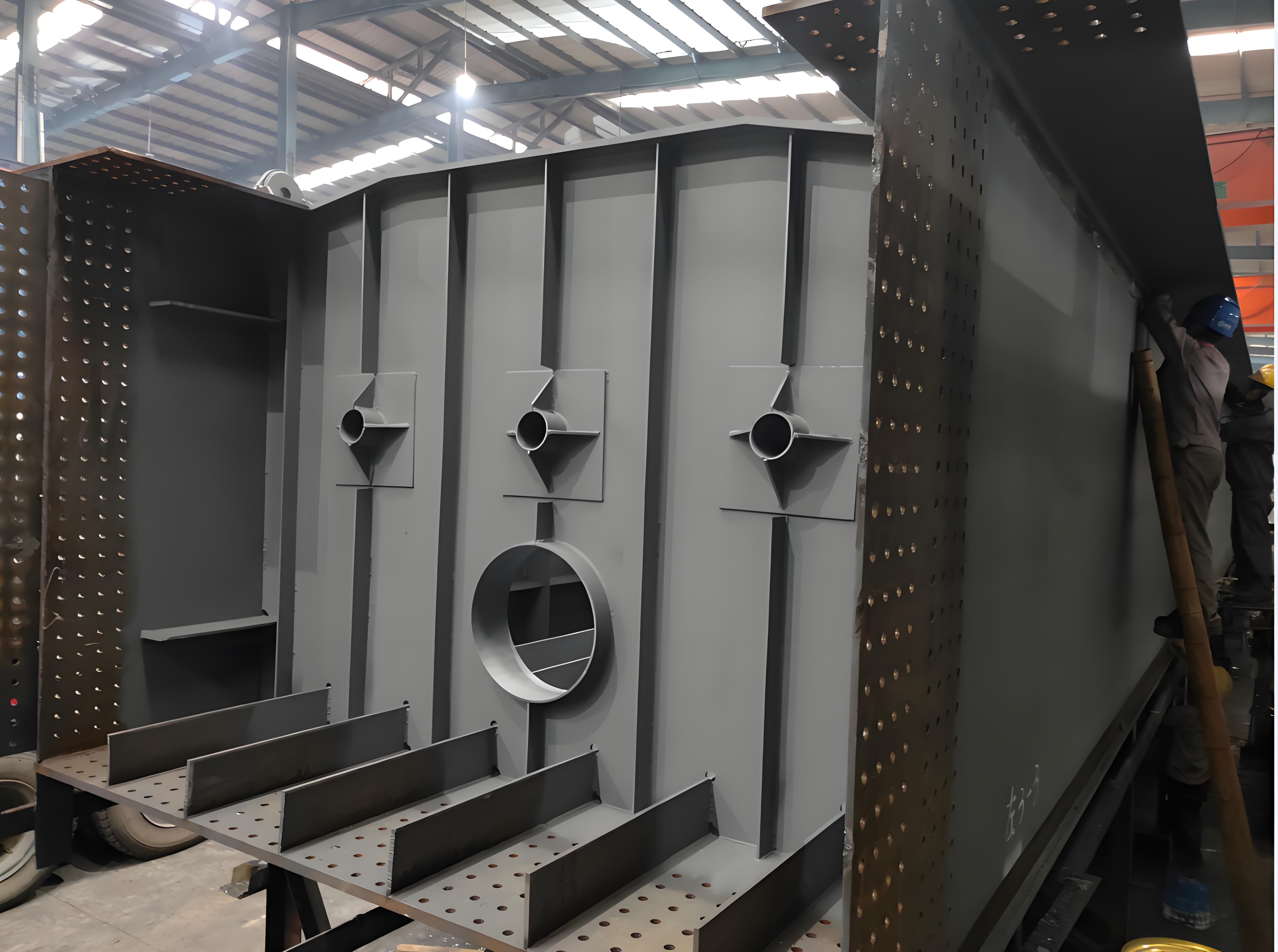

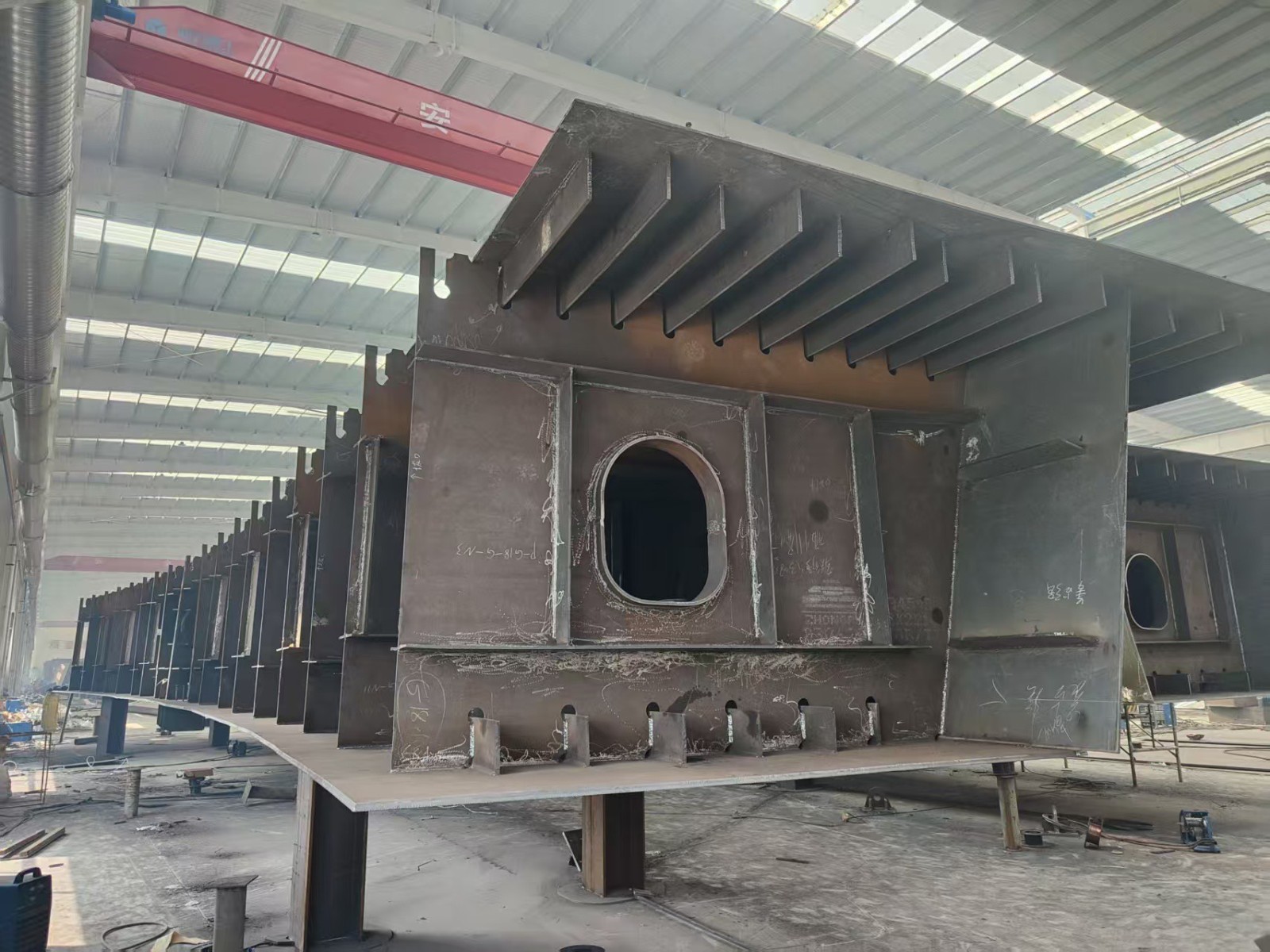

3.2 Steel Box Girder Components

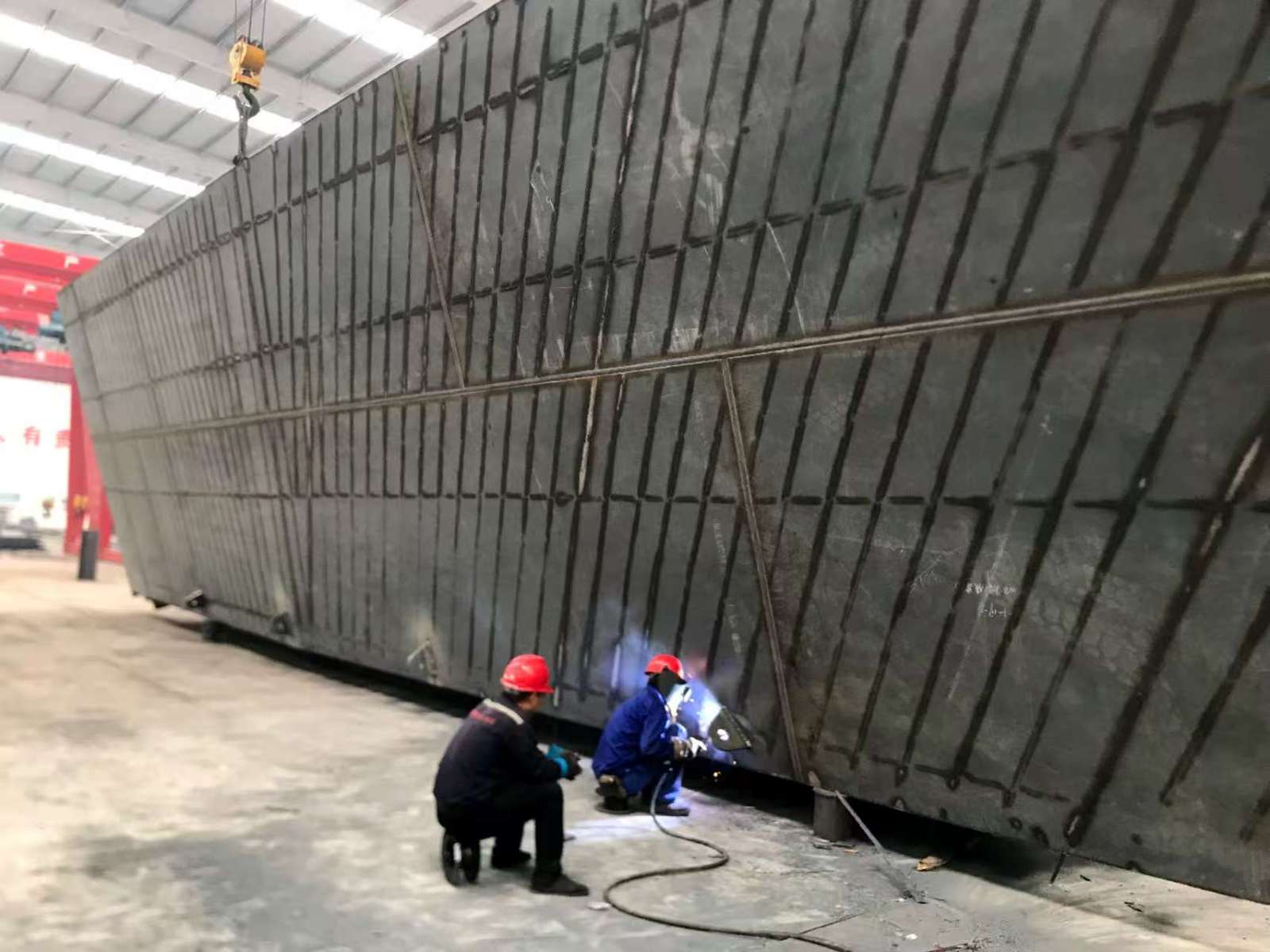

Box girder components may be used where torsional stiffness, wide deck support, or special bridge geometry is required. The fabrication process should control plate cutting, assembly sequence, welding deformation, internal stiffeners, diaphragms, and dimensional tolerance.

3.3 Cross Beam and Diaphragm System

Cross beams and diaphragms help connect main girders and improve structural coordination. These components require accurate hole position, plate alignment, welding control, and clear assembly marks to help the site team install them in the correct location.

3.4 Stiffeners, Splice Plates and Connection Components

Bridge steelwork includes many small but critical components, such as stiffeners, splice plates, connection plates, gusset plates, bearing plates, bracing plates, and anchor-related parts. Missing or inaccurate small components can delay the entire assembly process.

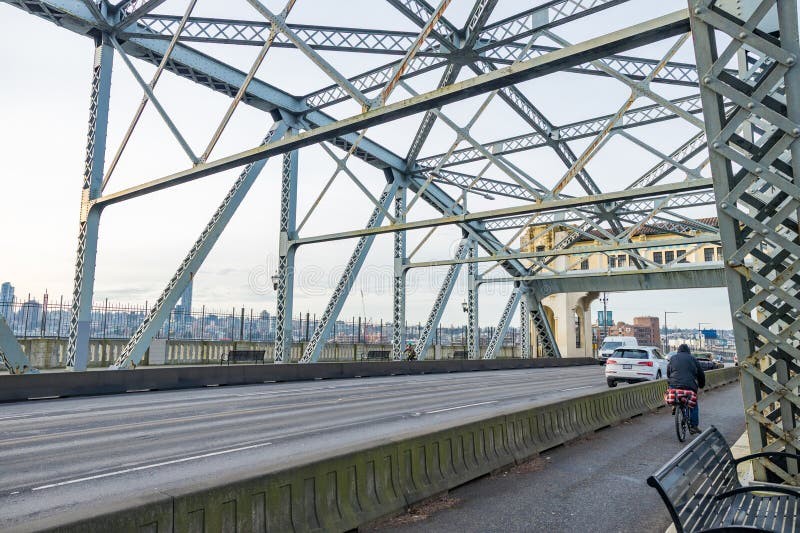

3.5 Pedestrian Bridge Steel Components

For pedestrian bridges, we can help fabricate main frames, truss members, deck support beams, stair structures, handrail support members, roof support frames, and connection components according to the project layout and design documents.

3.6 Temporary Bridge and Modular Bridge Components

Temporary and modular bridge projects often require faster fabrication, repeatable components, clear bolt connections, and practical site assembly. We can help fabricate modular steel members, cross frames, panel components, connection plates, and support parts according to drawings.

3.7 Bridge Guardrail and Accessory Support Components

Bridge projects may also require guardrail support members, service walkway supports, drainage support parts, inspection access components, sign support steel, and barrier-related steel parts. These accessories should be coordinated with the main bridge structure and installation sequence.

3.8 Bridge Steel Anti-Corrosion Solution

For outdoor bridge components, anti-corrosion planning should be confirmed before quotation and fabrication. Options may include blasting, shop primer, zinc-rich primer, epoxy intermediate coat, polyurethane topcoat, hot-dip galvanizing for suitable components, or other project-specified coating systems.

Product Standards and Reference Codes

The final design and fabrication standard should be confirmed according to the destination country, bridge type, project drawings, owner specifications, inspection requirements, and local approval process. For technical communication, material selection, fabrication, welding, surface treatment, and quality control, the following standards are commonly used as references.

4.1 Bridge Design and Load References

4.2 Fabrication and Welding References

For bridge steel components, welding quality, weld inspection, fatigue-sensitive details, dimensional tolerance, bolt-hole accuracy, splice plate fit-up, and material traceability should be confirmed before production. These items directly affect site assembly and long-term bridge performance.

4.3 Common Material Options

4.3 Common Material Options

4.4 Surface Treatment and Anti-Corrosion References

Bridge components face long-term outdoor exposure. The coating system should be confirmed before fabrication, including blasting grade, primer type, intermediate coat, topcoat, dry film thickness, edge treatment, repair method, inspection records, and maintenance plan.

4.5 Bridge Component Quality Coordination

For bridge projects, steel component supply should be coordinated with bridge design drawings, site assembly plan, lifting plan, inspection plan, transport limitation, and local approval requirements. We can support fabrication and technical coordination according to project documents, while final bridge design, certification, and approval should be confirmed by the project engineer and local authority.

Technical Support We Can Provide

Before production starts, we can help you review the technical details that decide whether bridge steel components will be easy to fabricate, inspect, transport, assemble, and maintain.

We can help check:

Bridge type and component scope
Project country or installation location
Bridge drawings, shop drawings, BOQ, or technical specifications
Steel grade, material certificate and traceability requirements
Girder type, span, component length and transport limitation
Welding details, WPS requirements and inspection requirements
Bolt connection, splice plate and hole accuracy requirements
Dimensional tolerance, camber, straightness and trial assembly requirements
Surface treatment, blasting grade, coating system and DFT requirement
Component marking, lifting points, packing method and loading sequence
Installation sequence, site bolting, site welding and temporary support coordination
Required documents, inspection records and packing lists

If you already have bridge drawings or a steel structure list, we can help review them from the viewpoint of fabrication, packing, shipment and installation. If you only have a preliminary component list, we can help you identify what still needs to be confirmed before quotation.

Zhengcheng Manufacturing Strength

At Zhengcheng, we do not treat bridge steel components as ordinary fabricated parts. We understand that these components must match drawings, tolerances, welding requirements, inspection documents, transport conditions, lifting points, surface protection and installation sequence.

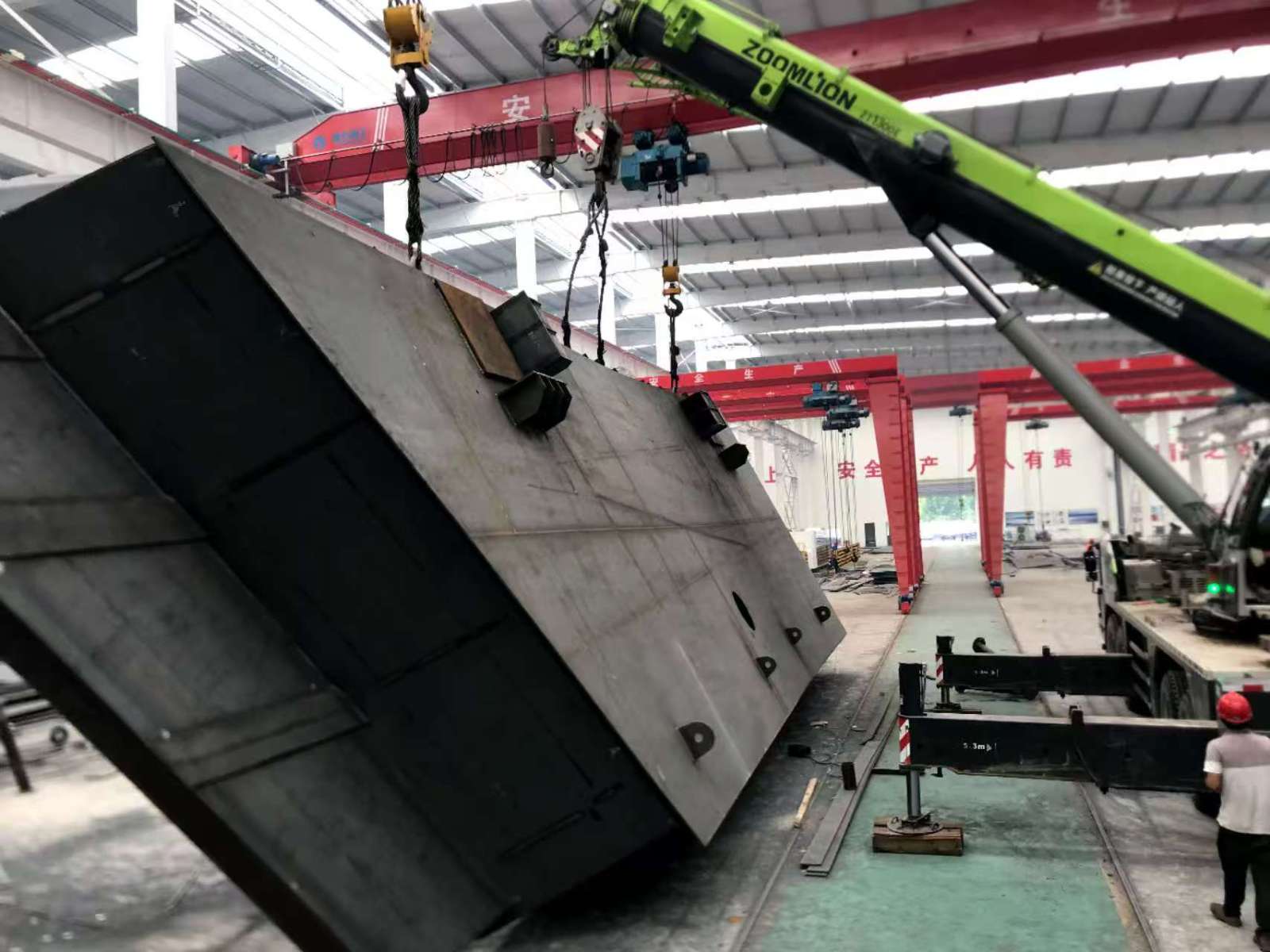

Our work can cover material preparation, plate cutting, assembly, welding, drilling, dimensional checking, surface preparation, coating or galvanizing, component marking, trial checking, packing, loading and shipment coordination. For bridge projects, one small detail can affect many later steps. A wrong hole position, unclear component mark, missing splice plate, weak coating repair, or mixed packing list may delay installation and inspection.

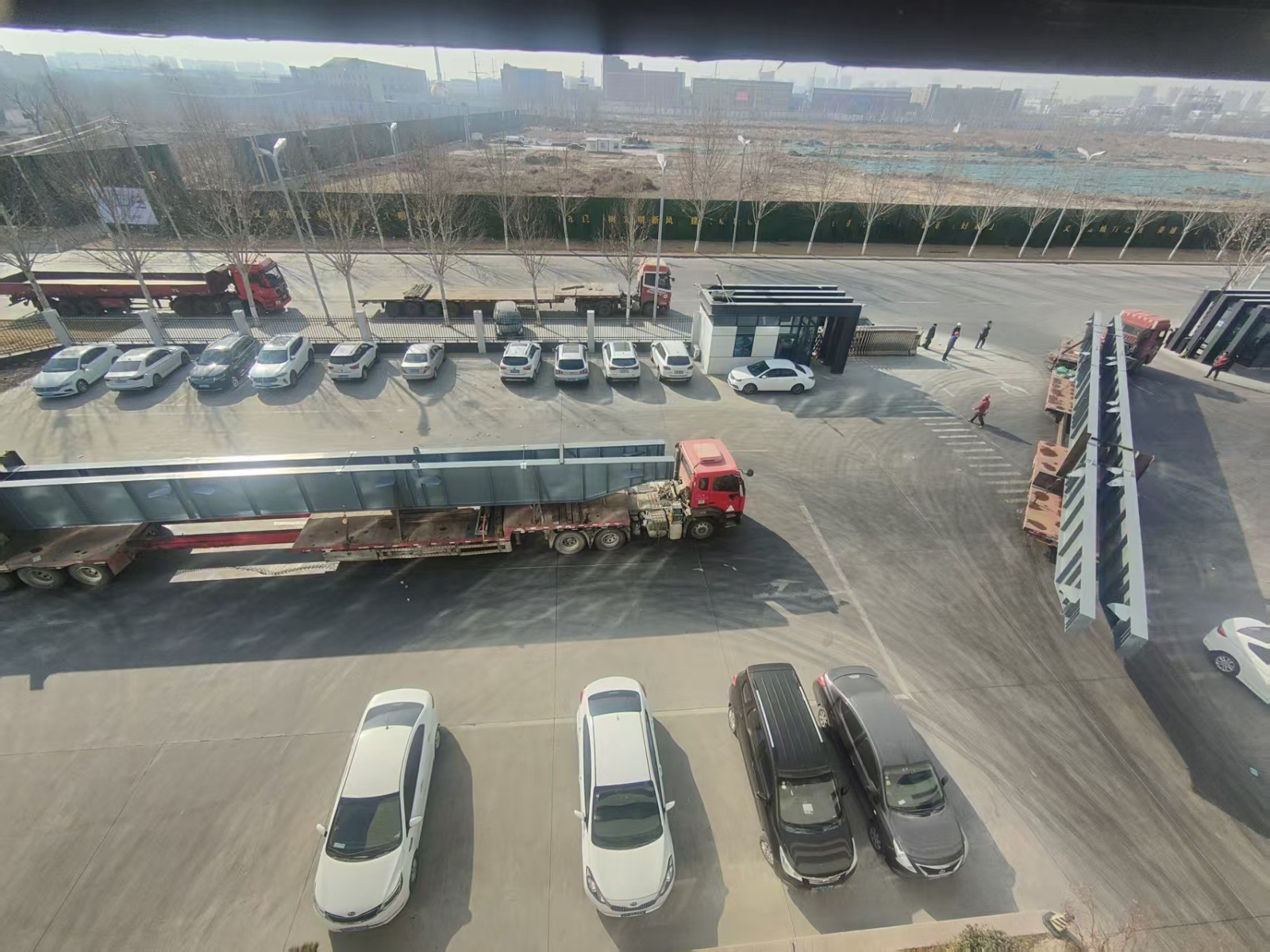

That is why we pay attention to the complete delivery logic. When the goods arrive at site, your team should be able to identify the steel members, match the bolts, follow the drawings, check the documents, and move through the assembly sequence with fewer questions.

One-Stop Solution for Bridge Steel Components

A bridge steel component project should not be handled as scattered steel parts. Drawing review, material selection, fabrication, welding, inspection, surface treatment, packing, shipping and installation communication must stay connected.

We can support the full process from early technical communication to final delivery. This includes drawing review, material planning, steel member fabrication, welding coordination, drilling, coating or galvanizing, quality checking, packing list preparation, loading coordination, shipping document support and installation communication.

For overseas bridge projects, this one-stop coordination is especially useful. Once the goods arrive overseas, every correction becomes slower and more expensive. We help you solve as much as possible before shipment, when problems are still easier to control.

Our Engineering Team

Our team includes steel structure engineers, fabrication coordinators, production managers, quality inspectors and export service staff. For bridge steel component projects, our senior engineering personnel can help review key points such as component scope, plate thickness, girder details, welding requirements, bolt-hole layout, stiffener arrangement, dimensional tolerance, surface treatment, packing method and installation sequence.

During production and installation, we can continue to provide project communication support. If your team has questions about drawings, component marks, bolt connections, splice plates, packing lists, coating documents, inspection records or installation order, we can help respond and coordinate as quickly as possible.

For overseas infrastructure projects, time difference should not leave an important technical question unresolved for too long. We can support communication across different time zones and help your team keep moving when urgent clarification is needed.

Welcome to Visit Our Company

If you want to understand how bridge steel components are fabricated before placing an order, you are welcome to visit our company. You can see how steel plates are prepared, how components are assembled and welded, how holes and splice plates are processed, how surface treatment is handled, and how components are marked and packed.

Bridge steel components are not a casual purchase. They affect project schedule, transport planning, site assembly, inspection, coating protection and long-term infrastructure performance. Visiting the factory, meeting the engineering and production team, and discussing your drawings face to face can help you make a clearer decision.
