Steel Structure Poultry Farm Building

Product Overview

A poultry farm building is not just a steel shed. It has to support the whole farming process: feeding, drinking, ventilation, lighting, temperature control, egg collection, manure removal, cleaning, equipment maintenance, and daily farm management.

If the building is planned only as a simple frame, problems often appear after installation. The airflow may not be smooth. The fan and cooling pad positions may not match the equipment layout. The interior may become too humid. Steel parts may rust faster than expected. Maintenance aisles may be too narrow. Feed lines, drinking lines, cages, or litter areas may not have enough space. These problems are much harder to fix after the house is already built.

At Zhengcheng, we help you turn poultry farming requirements into a practical steel structure poultry house solution. We can support the main steel frame, roof and wall enclosure, insulation system, ventilation opening arrangement, fan and cooling pad support, doors, gutters, anti-corrosion coating, cage or floor-raising layout coordination, component marking, export packing, and installation communication.

We do not only look at the steel frame. We also pay attention to how the building will be used every day: how birds are raised, how air moves, how equipment is installed, how waste is removed, how workers enter for cleaning and maintenance, and how the structure can stay easier to manage after years of operation.

2. Core Advantages

2.1 Built Around Real Poultry Farming Operation

The poultry house can be planned around broiler floor raising, layer cage systems, breeder houses, pullet houses, feeding lines, drinking lines, egg collection systems, manure belts, ventilation fans, cooling pads, lighting rows, and maintenance aisles. This helps the building serve the farming process instead of becoming a difficult shell to use.

2.2 Better Ventilation and Indoor Environment Control

Poultry houses need stable airflow, proper temperature, lower moisture, and better air quality. We can help reserve exhaust fan positions, cooling pad areas, air inlets, side openings, ridge ventilation, wall louvers, and insulation options according to the local climate and farming method.

2.2 Better Ventilation and Indoor Environment Control

Poultry houses need stable airflow, proper temperature, lower moisture, and better air quality. We can help reserve exhaust fan positions, cooling pad areas, air inlets, side openings, ridge ventilation, wall louvers, and insulation options according to the local climate and farming method.

2.4 Easier Equipment Installation

A good poultry house should leave clear space for equipment installation. We can coordinate the steel frame with feeding systems, drinking systems, cage rows, manure removal belts, egg collection lines, lighting, fans, cooling pads, service doors, and maintenance aisles before fabrication starts.

2.4 Easier Equipment Installation

A good poultry house should leave clear space for equipment installation. We can coordinate the steel frame with feeding systems, drinking systems, cage rows, manure removal belts, egg collection lines, lighting, fans, cooling pads, service doors, and maintenance aisles before fabrication starts.

3. Common Technical Solutions

3.1 Broiler Poultry House Steel Structure

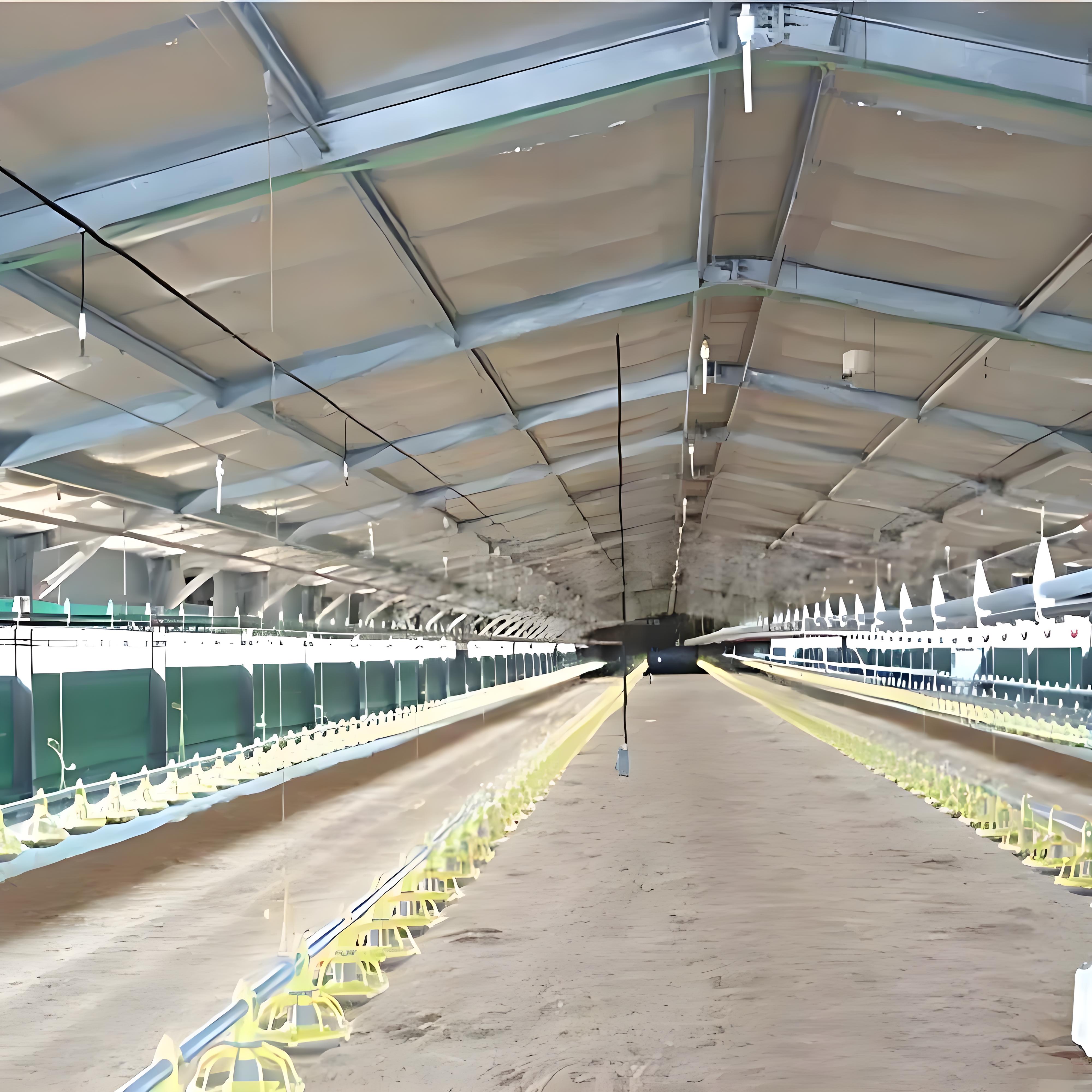

This solution is suitable for broiler farms using floor raising, automatic feeding, automatic drinking, mechanical ventilation, cooling pads, and controlled lighting. The building can be planned with a clear-span steel frame, insulated roof and wall panels, side air inlets, exhaust fans, service doors, and cleaning access.

3.2 Layer Chicken House Steel Structure

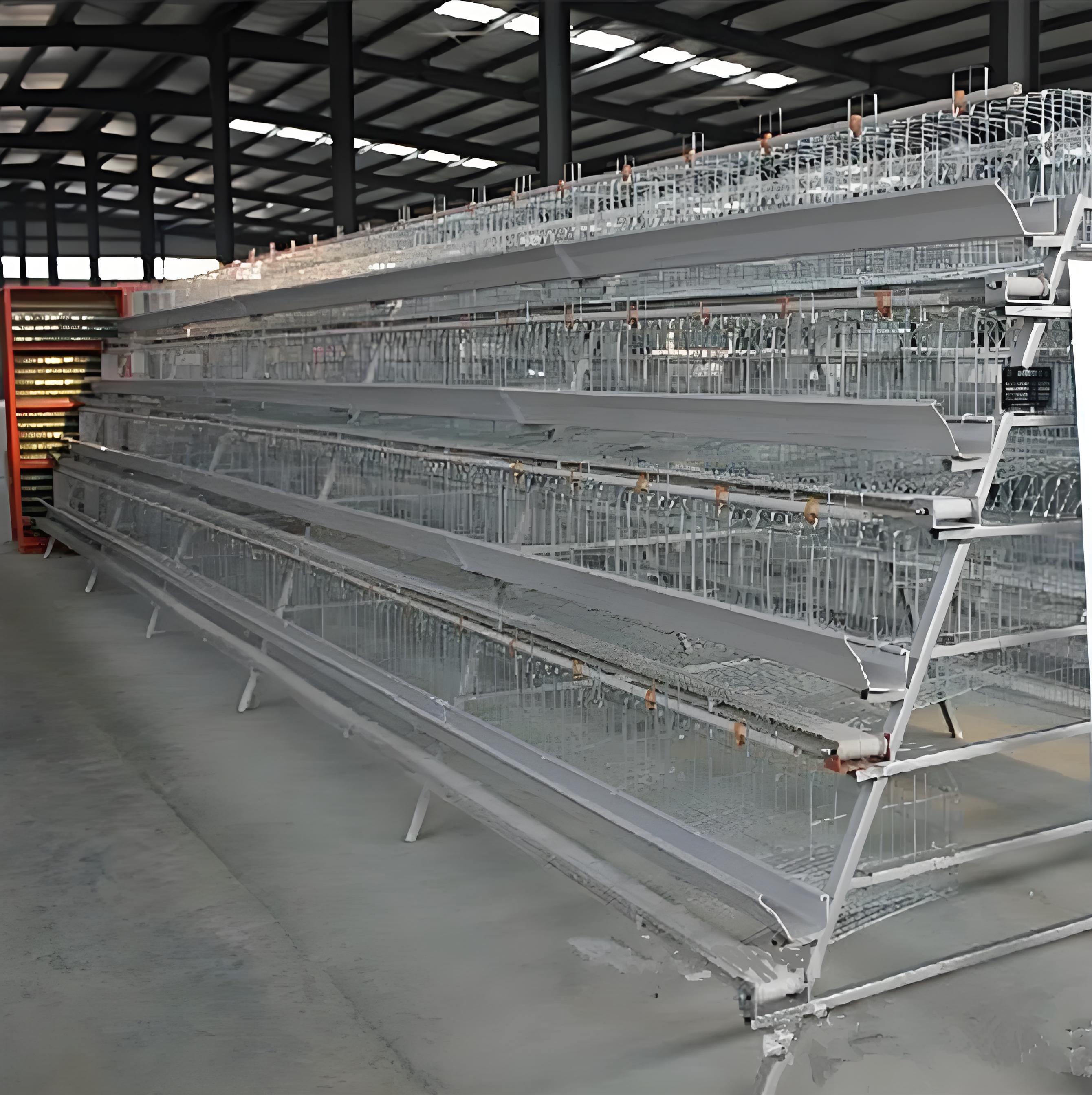

For layer farms, the poultry house can be coordinated with A-frame cages, H-type cages, egg collection systems, feeding lines, drinking lines, manure belts, lighting rows, and maintenance aisles. Column spacing, house width, ventilation layout, and equipment clearance should be checked before steel fabrication.

3.3 Breeder Poultry House Solution

Breeder houses need a more careful layout for feeding, nesting, lighting, ventilation, egg collection, and worker access. The steel structure can be planned with practical spans, insulated panels, ventilation openings, service areas, and equipment support positions according to the breeding process.

3.3 Breeder Poultry House Solution

Breeder houses need a more careful layout for feeding, nesting, lighting, ventilation, egg collection, and worker access. The steel structure can be planned with practical spans, insulated panels, ventilation openings, service areas, and equipment support positions according to the breeding process.

3.5 Open-Sided Poultry Farm Building

For mild climates and lower-budget projects, an open-sided poultry building can use a steel frame, roof covering, side curtains, mesh openings, and natural ventilation. The structure is simpler, but wind direction, rain protection, drainage, and cleaning access still need to be planned carefully.

3.6 Insulated Poultry House Solution

For hot, cold, rainy, or high-humidity areas, insulated sandwich panels can help improve indoor temperature stability and reduce condensation problems. Rock wool, glass wool, polyurethane, or EPS panels can be selected according to budget, insulation demand, fire-performance requirement, and local climate.

3.7 Anti-Corrosion Poultry Farm Structure

Poultry farm buildings need serious anti-corrosion planning because of humidity, ammonia, disinfectant, and cleaning water. Surface treatment can include galvanized members, anti-rust paint, zinc-rich primer, epoxy coating, polyurethane topcoat, or hot-dip galvanizing where applicable.

3.8 Expandable Poultry Farm Building

If your poultry farm may expand later, we can help reserve extension direction, repeated bay spacing, removable wall sections, and connection details. This allows the first phase to meet current production needs while leaving room for future flock expansion.

4. Product Standards and Reference Codes

The final design and fabrication standard should be confirmed according to the destination country, local building code, farm design, animal welfare requirements, environmental approval requirements, project drawings, and engineering specifications. For technical communication, material selection, structural design coordination, fabrication, welding, surface treatment, and quality control, the following standards are commonly used as references.

4.1 Structural Design References

AISC 360 provides generally applicable requirements for the design and construction of structural steel buildings and other structures. ASCE 7-22 is used to determine minimum design loads and related criteria for buildings and other structures. Eurocode 3 applies to the design of buildings and other civil engineering works in steel.

4.2 Fabrication and Welding References

AWS D1.1 covers welding requirements for welded structures made from commonly used carbon and low-alloy construction steels. EN 1090-2 specifies requirements for execution of structural steelwork as structures or manufactured components.

4.3 Common Material Options

4.4 Surface Treatment and Anti-Corrosion References

ISO 12944 is commonly used as a reference for protective paint systems for steel structures, while ISO 1461 specifies general properties and test methods for hot-dip galvanized coatings applied to fabricated iron and steel articles.

4.5 Poultry Farming Use Coordination

For poultry farming buildings, the steel structure should be coordinated with ventilation, insulation, feeding systems, drinking systems, cage or floor-raising layout, manure removal, cleaning routes, drainage, lighting, and local environmental approval requirements. The EU laying hen directive and broiler welfare directive are examples of how poultry housing can be affected by animal welfare and stocking density rules, so final farming layout should follow local regulations and farm design requirements.

5. Technical Support We Can Provide

Before production starts, we can help you review the technical details that decide whether the poultry farm building will be easy to fabricate, ship, install, equip, clean, and maintain.

We can help check:

House length, width, height, and number of houses
Project country or farm location
Poultry type, such as broilers, layers, breeders, or pullets
Planned bird quantity and farming scale
Cage type or floor-raising layout
Feeding line, drinking line, egg collection, and manure removal space
Column grid, span, roof slope, and eave height
Wind load, snow load, seismic requirement, and local climate condition
Roof and wall panel type, insulation requirement, and condensation control
Ventilation fan position, cooling pad position, air inlet and side opening layout
Door size, service access, cleaning route, and drainage direction
Material grade, purlin type, fasteners, and surface treatment
Component marking, packing method, and container loading sequence
Installation drawings and technical communication points

If you already have poultry equipment drawings or a farm layout, we can help review the steel structure from the viewpoint of fabrication, packing, shipment, and installation. If you only have land size and planned bird quantity, we can help you organize what still needs to be confirmed before quotation.
