Drilling Platform Steel Structure System

Product Overview

Steel structures for drilling platforms are not ordinary building frames. They often need to work with drilling equipment, pipe systems, maintenance areas, operation decks, stairs, handrails, walkways, lifting points, and corrosion protection systems. In this kind of project, a small mistake in drawing interpretation, welding control, hole position, component marking, or packing sequence may cause serious trouble during installation.

At Zhengcheng, we help you turn drilling platform steel structure requirements into a clear fabrication and delivery solution. Our support can cover multi-storey steel frames, equipment support structures, pipe rack structures, deck platforms, access stairs, maintenance walkways, steel grating floors, handrail systems, bracing members, connection plates, surface treatment, export packing, and installation communication.

For offshore and energy-related projects, the pressure is usually not only price. The real pressure comes from technical documents, load requirements, corrosion environment, welding quality, tight schedules, heavy components, strict inspection, and communication between different project teams. We focus on helping you reduce these risks before production starts.

2. Core Advantages

2.1 Built for Heavy-Duty Offshore and Industrial Use

Drilling platform steel structures often need to carry equipment loads, operation loads, maintenance loads, pipe loads, wind loads, and sometimes vibration-related working conditions. We can help coordinate steel member sizes, bracing arrangement, connection details, and fabrication methods according to project drawings and required standards.

2.2 Multi-Level Working Platform Capability

Many drilling platform structures include multiple working levels, maintenance decks, pipe layers, stair towers, equipment access areas, and grating floors. We can help fabricate these multi-level steel structures with clear component marks, accurate bolt holes, and coordinated packing lists, so your local team can identify and install the components more easily.

2.3 Better Fit for Equipment, Pipes, and Maintenance Routes

A drilling platform structure must leave enough space for real operation. We can help consider equipment support points, pipe routing, maintenance access, stair positions, handrails, grating floors, removable panels, and inspection areas during technical confirmation.

2.4 Fabrication Control for Complex Steel Members

Offshore-related steel members are often heavier and more complicated than standard warehouse components. Welding quality, member straightness, hole accuracy, connection plates, surface preparation, coating quality, and component marking must be controlled carefully before shipment.

2.5 Export Packing for Heavy and Mixed Components

For overseas drilling platform steel structures, packing logic matters. Heavy frames, grating panels, stairs, handrails, bolts, plates, and small accessories must be packed with clear marks and lists. We can help arrange component marking, bundle planning, packing lists, container loading coordination, and installation communication.

3. Common Technical Solutions

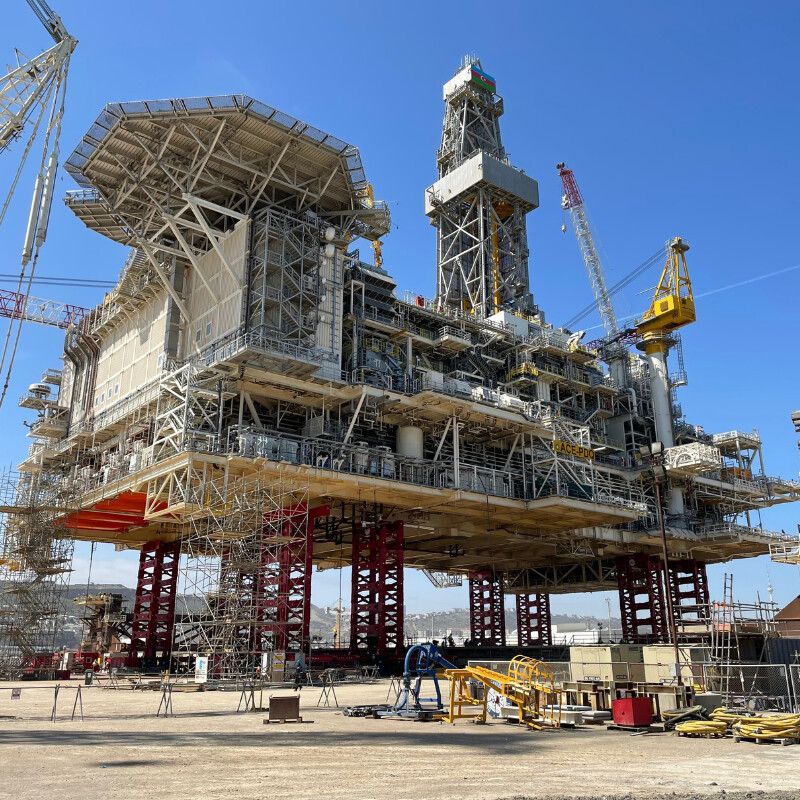

3.1 Drilling Platform Main Steel Frame

The main steel frame can include columns, beams, bracing members, base plates, connection plates, deck support beams, and equipment support frames. These members should be fabricated according to project drawings, load requirements, welding specifications, and corrosion protection requirements.

3.2 Multi-Storey Operation Platform

Multi-storey operation platforms are used for drilling equipment access, maintenance, inspection, and pipe system coordination. We can help fabricate platform beams, steel grating floors, stairs, handrails, kick plates, connection parts, and removable access sections.

3.3 Equipment Support Structure

Drilling equipment, pumps, tanks, mechanical units, and auxiliary systems often require dedicated support frames. These structures must consider equipment weight, vibration, maintenance clearance, bolt connection, base plate detail, and installation sequence.

3.4 Pipe Rack and Cable Tray Support

Pipe racks and cable tray supports are important parts of drilling platform steel structures. They should be coordinated with pipe routing, cable routing, maintenance access, load requirements, and corrosion protection. We can help fabricate pipe rack columns, beams, brackets, supports, and connection parts.

3.5 Stair, Walkway, Handrail, and Grating System

Safe access is critical for offshore and drilling-related structures. We can provide steel stairs, ladders, walkways, handrails, kick plates, grating floors, access platforms, and inspection routes according to project drawings and safety requirements.

3.6 Modular Skid and Prefabricated Steel Module

For some projects, steel structures can be fabricated as modular skids or prefabricated steel modules. This helps reduce on-site assembly work and improves project control when transportation, lifting, and installation conditions are properly planned.

3.7 Anti-Corrosion Offshore Steel Structure Solution

Drilling platform steel structures may face marine atmosphere, salt spray, humidity, oil contamination, high temperature, and outdoor exposure. Surface treatment can include blasting, zinc-rich primer, epoxy coating systems, polyurethane topcoat, thermal spray aluminum, or hot-dip galvanizing where applicable.

3.8 Inspection and Documentation Support

For offshore-related steel structures, documentation is often as important as fabrication. We can help prepare material certificates, welding records, inspection records, packing lists, component lists, coating reports, and other documents according to project requirements.

Product Standards and Reference Codes

The final standard system should be confirmed according to the project location, platform type, engineering drawings, owner specifications, classification society requirements, and local approval process. For technical communication, design coordination, fabrication, welding, surface treatment, inspection, and documentation, the following standards are commonly used as references.

4.1 Offshore Structural References

ISO 19902 contains requirements for planning and engineering of the design, fabrication, transportation and installation of fixed steel offshore structures; API RP 2A-WSD is a guide for the design and construction of new fixed offshore platforms and relocation of existing platforms used for drilling, development, production and storage of hydrocarbons. DNV also lists offshore standards such as metallic materials, structural design of offshore units, and fabrication/testing of offshore structures among its offshore rule and standard documents.

4.2 Classification Society and Offshore Unit References

ABS has current offshore unit rules available for building and classing offshore units, and DNV provides a Rules and Standards Explorer for accessing active DNV rules, standards, and recommended practices. These should be treated as project references unless the project specifically requires class approval under a named society.

4.3 Welding and Fabrication References

For drilling platform steel structures, welding procedures, welder qualification, NDT requirements, connection details, dimensional tolerance, and traceability should be confirmed according to the project documents and inspection plan.

4.4 Common Material Options

4.5 Surface Treatment References

Offshore-related structures are exposed to more severe corrosion conditions than ordinary indoor steel buildings. The coating system should be confirmed before quotation and production, including surface preparation grade, primer type, intermediate coat, topcoat, dry film thickness, repair method, and inspection documents.

5. Technical Support We Can Provide

Before production starts, we can help you review the technical details that decide whether the steel structure will be easy to fabricate, inspect, ship, install, and maintain.

We can help check:

Project drawings and steel structure scope
Platform type and working area
Multi-level platform layout
Equipment support positions
Pipe rack and cable tray layout
Stair, walkway, handrail and grating requirements
Load requirements and operating conditions
Material grade and certificate requirements
Welding details and NDT requirements
Bolt connection and base plate details
Surface treatment and corrosion protection system
Component marking and traceability requirements
Packing plan and container loading sequence
Installation drawings and site communication points

If you already have drawings, we can review them from the viewpoint of fabrication, packing, shipment, and installation. If you only have a structure list or early project information, we can help organize what still needs to be confirmed before quotation.

One-Stop Solution for Drilling Platform Steel Structures

A drilling platform steel structure project should not be handled as scattered steel pieces. Design coordination, material selection, welding, inspection, surface treatment, packing, shipping, and installation communication must stay connected.

We can support the whole process from early technical communication to final delivery. This includes drawing review, material planning, fabrication, welding coordination, coating or galvanizing, quality checking, packing list preparation, container loading coordination, shipping document support, and installation communication.

For overseas projects, this one-stop coordination is especially important. Once the goods arrive overseas, every correction becomes slower and more expensive. We help you solve as much as possible before shipment, when problems are still easier to control.

Our Engineering Team

Our team includes steel structure engineers, fabrication coordinators, production managers, quality inspectors, and export service staff. For drilling platform steel structure projects, our senior engineering personnel can help review key points such as multi-level frame layout, equipment support, pipe rack structure, platform load, bracing system, connection details, stair and walkway layout, surface treatment, packing method, and installation sequence.

During production and installation, we can continue to provide project communication support. If your team has questions about drawings, component marks, bolt connections, platform layout, packing lists, coating documents, or installation order, we can help respond and coordinate as quickly as possible.

For overseas industrial projects, time difference should not leave a serious technical question unanswered for too long. We can support communication across different time zones and help your team keep moving when urgent clarification is needed.
