Automated Steel Structure Parking Garage

Product Overview

A steel structure parking garage is not just a steel frame for storing cars. It must work with vehicle movement, parking platforms, mechanical equipment, access control, safety devices, lighting, drainage, ventilation, fire protection coordination, and daily operation.

For automated or vertical parking projects, many problems appear when the steel structure and parking equipment are not coordinated early enough. The platform size may not match the vehicle type. The equipment interface may be unclear. The column position may block vehicle movement. The structure may not leave enough room for maintenance. The surface treatment may not match the outdoor or humid environment. Once the steel members arrive at site, correcting these issues becomes slower and more expensive.

At Zhengcheng, we help you turn parking garage requirements into a practical steel structure solution. We can support the main steel frame, parking deck support, platform structure, ramp support, stair and walkway systems, roof and wall enclosure, bracing members, connection plates, anchor bolt coordination, surface treatment, export packing, and installation communication.

We do not only look at steel weight. We pay attention to how the parking garage will actually be used: how vehicles enter, where platforms move, how people access maintenance areas, how equipment is supported, how water is drained, how steel members are protected from corrosion, and how the structure can be installed with fewer site questions.

2. Core Advantages

2.1 More Parking Capacity in Limited Land Space

A vertical or multi-level steel parking garage can help increase parking capacity when land is limited. It is suitable for commercial streets, office buildings, hotels, residential communities, hospitals, industrial parks, transportation hubs, and public parking areas where ground space is expensive or insufficient.

2.2 Steel Structure Designed Around Vehicle and Equipment Use

The steel frame can be coordinated with parking platforms, lifting equipment, sliding systems, vehicle dimensions, access lanes, turning space, maintenance routes, and safety clearance. This helps the structure work with the parking system instead of becoming a frame that needs repeated modification

2.3 Faster Installation with Prefabricated Steel Components

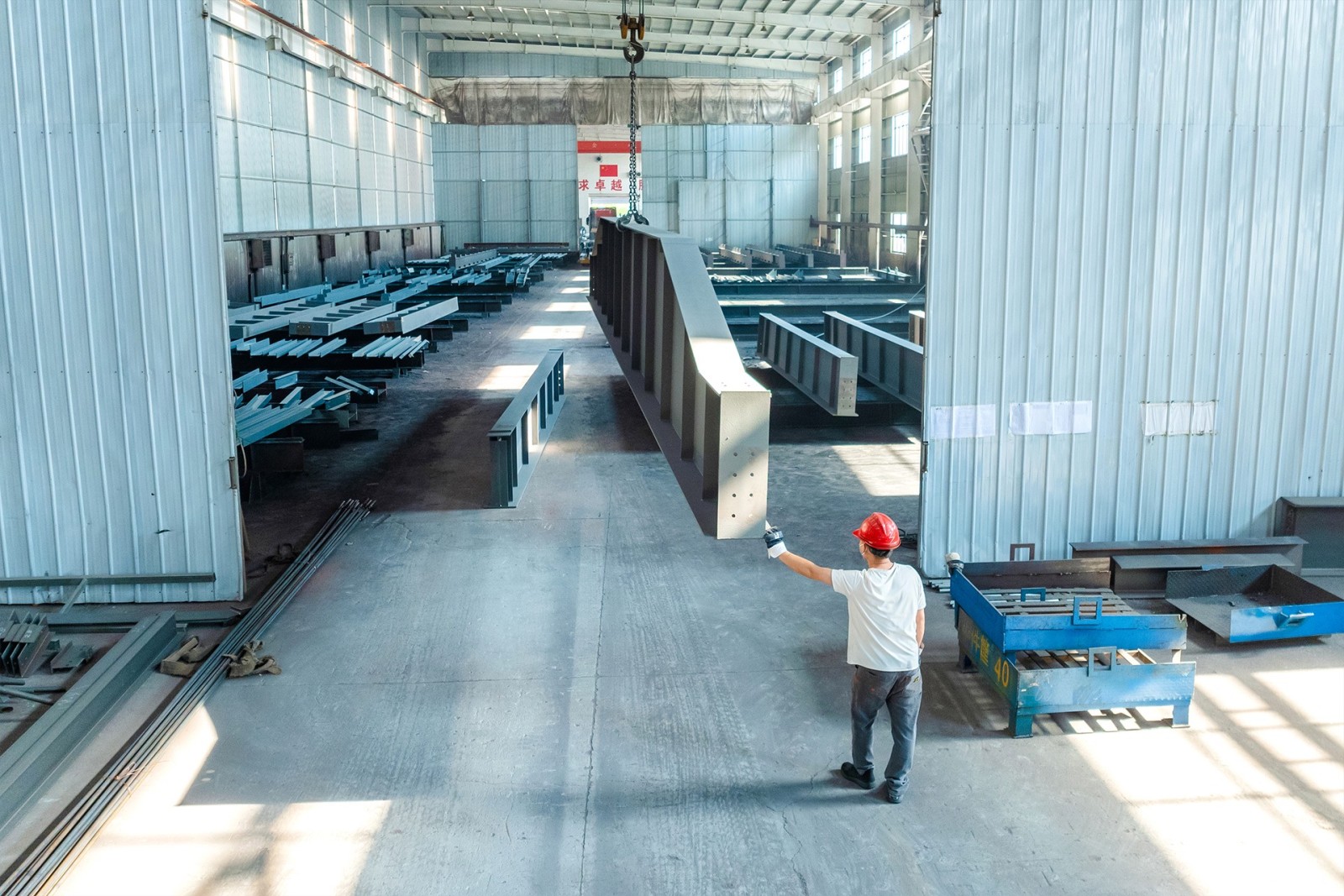

Steel columns, beams, bracing members, platform support frames, stair components, connection plates, bolts, roof members, and wall support members can be prefabricated before shipment. Clear component marks and packing lists help the local installation team identify and assemble the structure more efficiently.

2.3 Faster Installation with Prefabricated Steel Components

Steel columns, beams, bracing members, platform support frames, stair components, connection plates, bolts, roof members, and wall support members can be prefabricated before shipment. Clear component marks and packing lists help the local installation team identify and assemble the structure more efficiently.

2.4 Better Safety and Maintenance Coordination

Parking garage structures should leave space for inspection, equipment maintenance, safe access, stair routes, lighting, guardrails, drainage, and emergency coordination. We can help review these areas before fabrication, so the finished structure is easier to operate and maintain.

3. Common Technical Solutions

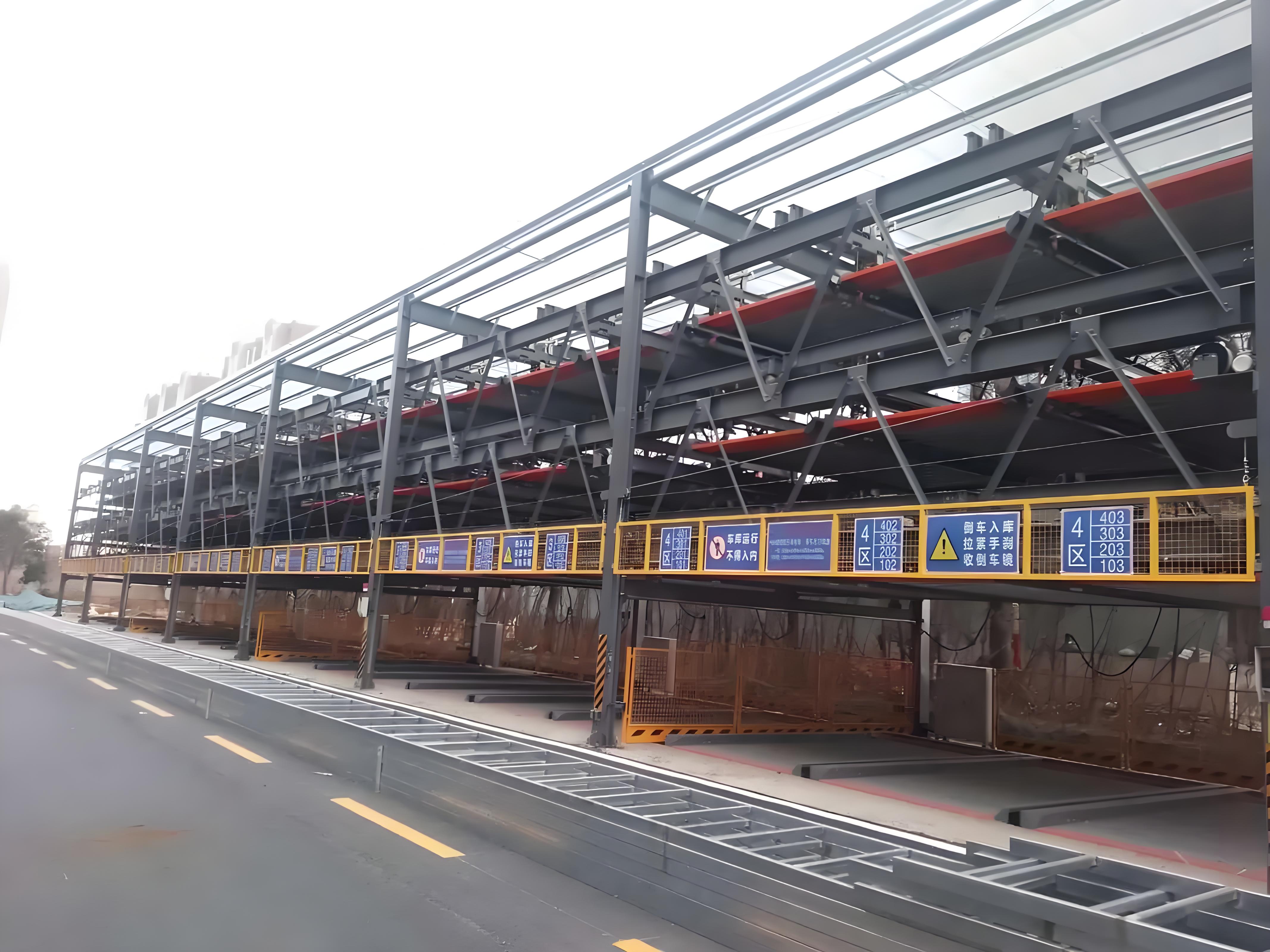

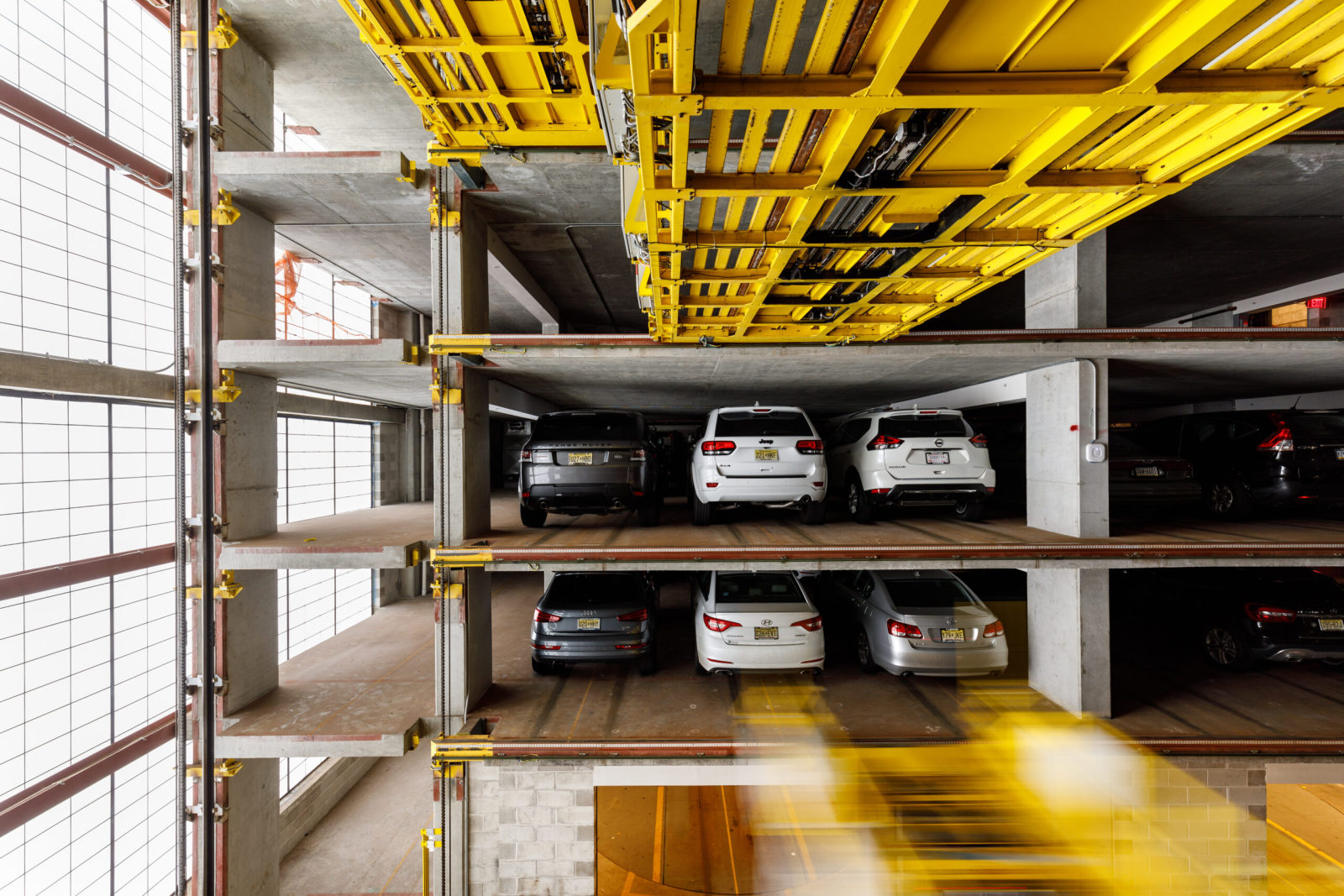

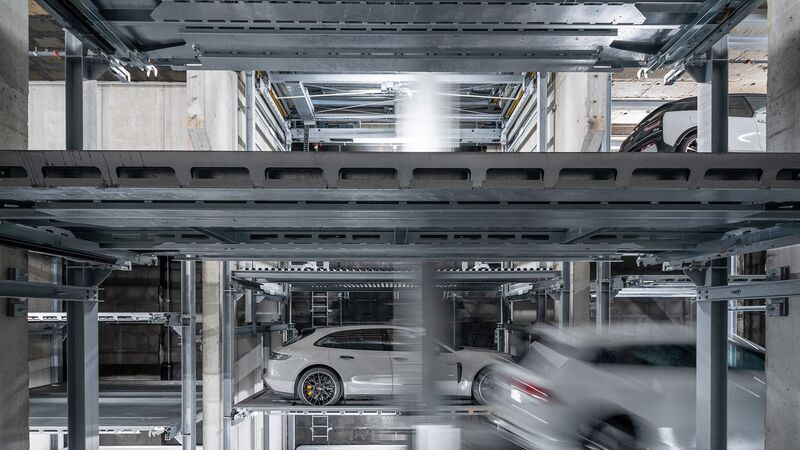

3.1 Vertical Parking Garage Steel Frame

This solution is suitable for vertical parking systems where vehicles are moved by lifting or automated equipment. The steel structure can include main columns, beams, bracing, platform support frames, equipment interface areas, access doors, maintenance platforms, and roof or wall enclosure support members.

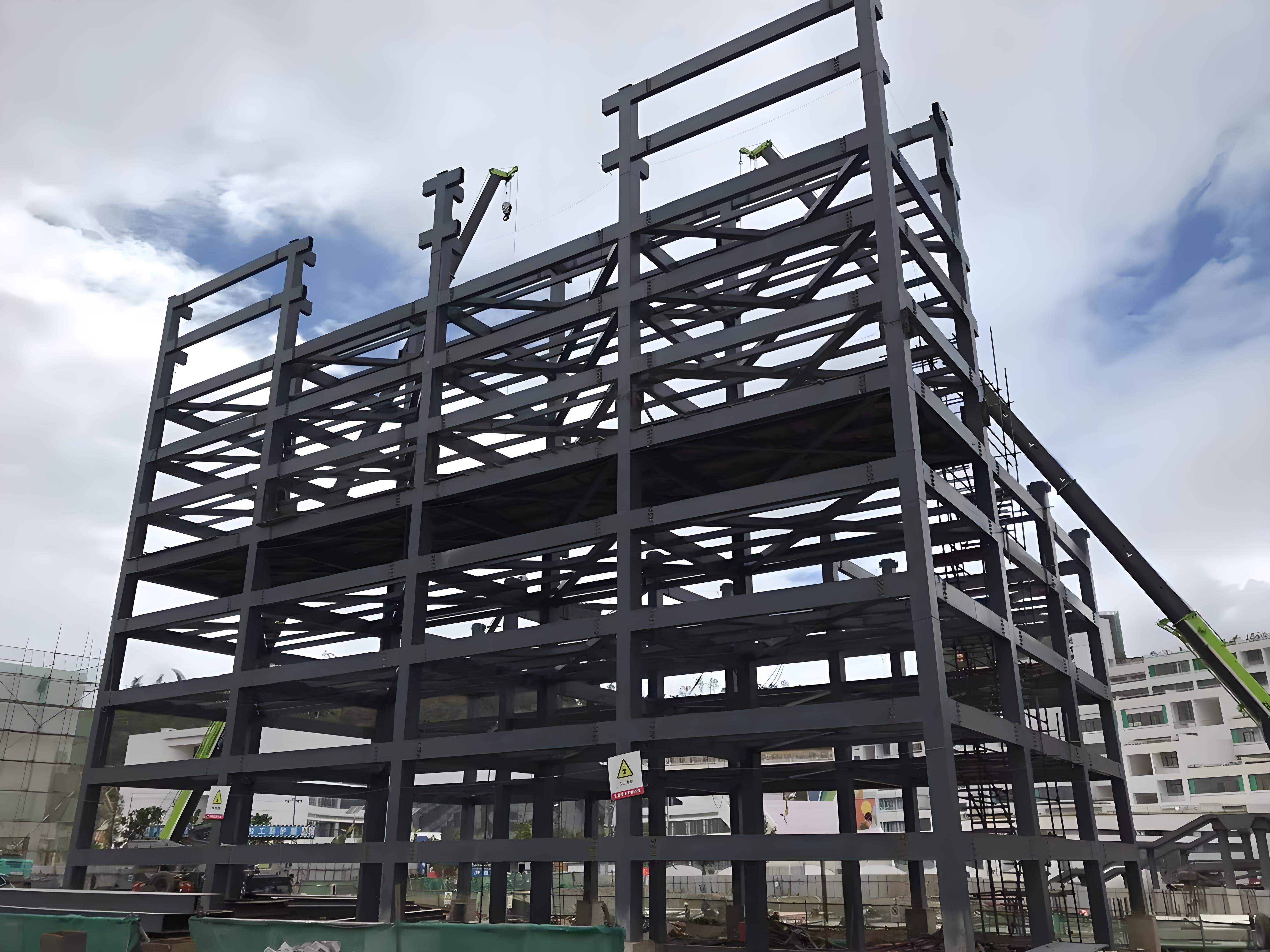

3.2 Multi-Level Steel Parking Garage

A multi-level steel parking garage can be used for above-ground parking buildings, commercial parking areas, office building parking extensions, and public parking facilities. The structure can include parking decks, beams, columns, ramps, stairs, guardrails, roof systems, and façade support members.

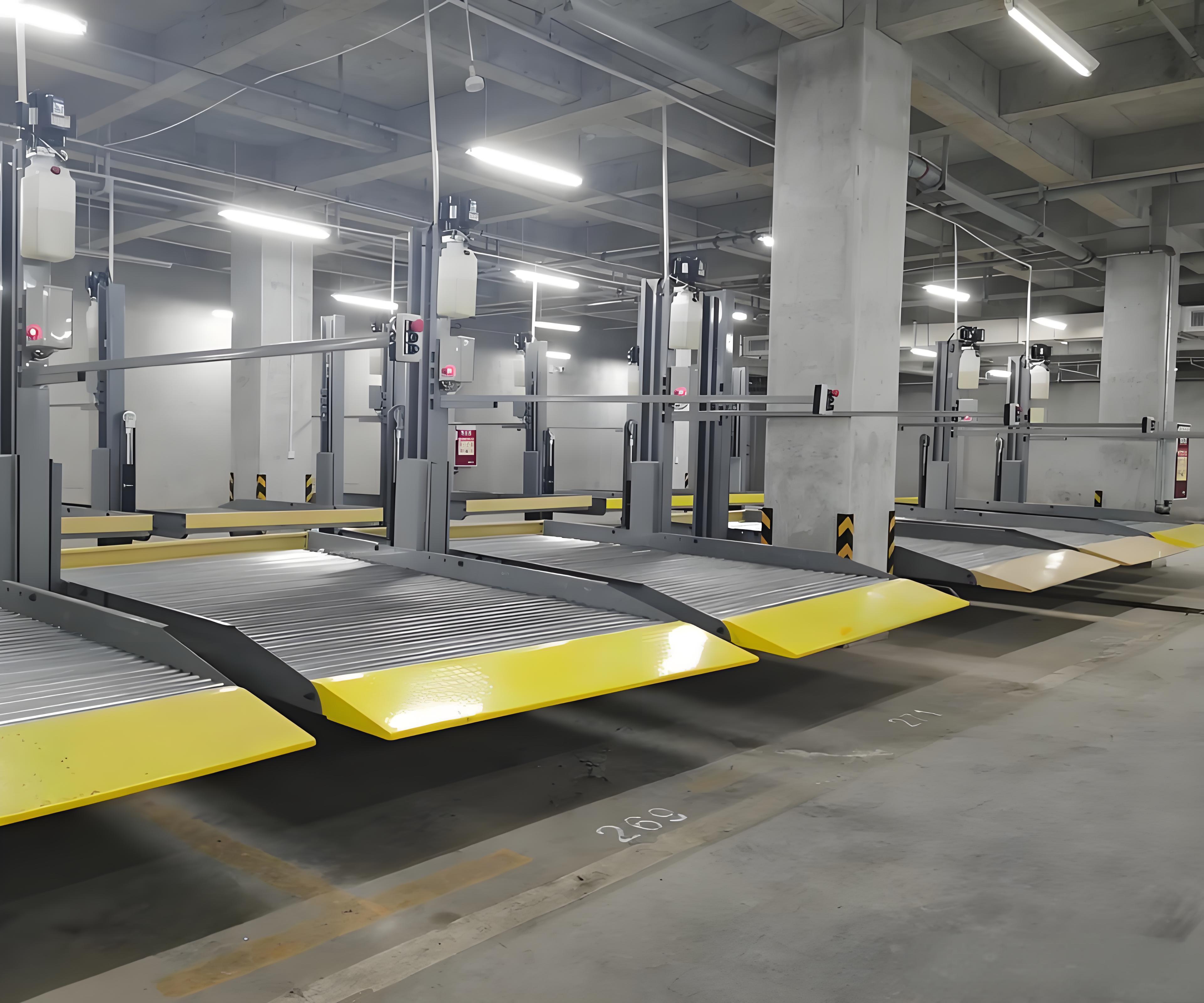

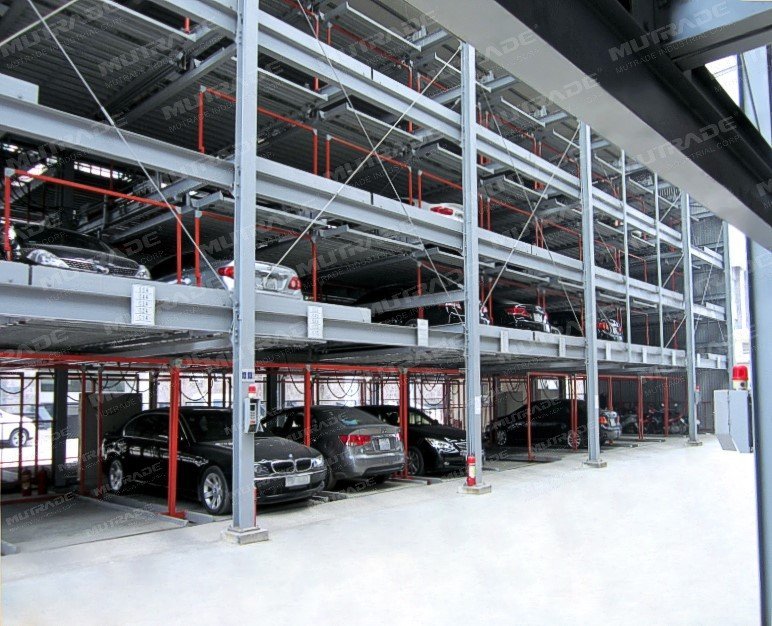

3.3 Mechanical Parking System Support Structure

For mechanical parking projects, the steel structure should be coordinated with lifting frames, sliding platforms, guide rails, drive equipment, sensors, access doors, and maintenance areas. Equipment load, dynamic effects, installation tolerance, and safety clearance should be confirmed before fabrication.

3.4 Commercial Parking Garage Structure

For shopping centers, hotels, offices, hospitals, and public buildings, parking garages must support frequent vehicle movement, clear access routes, pedestrian safety, lighting, signage, drainage, and fire protection coordination. We can help fabricate the steel frame and related support members according to project drawings.

3.5 Roofed Outdoor Parking Structure

For outdoor parking areas, a roofed steel structure can provide sunshade and rain protection while keeping the layout simple. It can be used for carports, parking sheds, industrial parking areas, and temporary or semi-permanent parking spaces.

3.6 Enclosed Parking Garage with Wall and Roof System

If the parking garage needs better weather protection or a cleaner appearance, roof and wall systems can be added. Options can include corrugated steel sheets, perforated panels, insulated panels, ventilation louvers, skylight panels, gutters, downpipes, and façade support steel.

3.7 Ramp, Stair and Maintenance Access Structure

Parking structures may require ramps, stairs, maintenance walkways, guardrails, platforms, and access points. These parts should be coordinated with vehicle movement, pedestrian routes, equipment rooms, and emergency access before fabrication.

3.8 Anti-Corrosion Parking Garage Steel Structure

Parking garages may face outdoor exposure, high humidity, coastal air, vehicle exhaust, and water dripping from vehicles. Surface treatment can include blasting, anti-rust painting, zinc-rich primer, epoxy coating, polyurethane topcoat, or hot-dip galvanizing where applicable.

Product Standards and Reference Codes

The final design and fabrication standard should be confirmed according to the destination country, local building code, mechanical parking equipment requirements, project drawings, fire safety requirements, and engineering specifications. For technical communication, material selection, structural design coordination, fabrication, welding, surface treatment, and quality control, the following standards are commonly used as references.

4.1 Parking Equipment and Safety References

EN 14010:2003+A1:2009 is a European reference for power-driven vehicle parking equipment, covering safety and EMC requirements for design, manufacturing, erection and commissioning stages. This type of standard should be treated as a project reference unless the project documents require specific certification or local approval.

4.2 Structural Design References

AISC 360 provides generally applicable requirements for the design and construction of structural steel buildings and other structures. ASCE 7-22 is used for determining minimum design loads and related criteria for buildings and other structures, including wind, seismic, snow and other load conditions.

4.3 Fabrication and Welding References

For parking garage steel structures, welding quality, bolt-hole accuracy, column position, platform level, bracing arrangement, connection plates, equipment interface details, and component marks should be checked before shipment. These details affect both steel frame installation and parking equipment installation.

4.4 Common Material Options

4.5 Surface Treatment and Anti-Corrosion References

ISO 12944 is commonly used as a reference for protective paint systems for steel structures, while ISO 1461 is used for hot-dip galvanized coatings on fabricated iron and steel articles. These references are useful when the parking garage is exposed to rain, humidity, coastal air or long-term outdoor conditions.

4.6 Parking Garage Use and Safety Coordination

For mechanical or automated parking systems, the steel structure should be coordinated with vehicle dimensions, equipment interface, safety devices, maintenance access, fire protection, ventilation, drainage and local approval requirements. We can support steel structure fabrication and technical coordination according to project drawings, while final system compliance should be confirmed by the parking equipment supplier, project engineer and local authority.

Technical Support We Can Provide

English:
Before production starts, we can help you review the technical details that decide whether the parking garage steel structure will be easy to fabricate, ship, install, coordinate with equipment, and maintain.

We can help check:

Parking garage type, such as vertical parking, mechanical parking, multi-level parking, or roofed parking structure
Project country or installation location
Vehicle type and parking capacity requirement
Building length, width, height, and number of levels
Column grid, platform height, ramp layout, and vehicle clearance
Equipment interface, guide rail area, lifting point, and maintenance space
Wind load, seismic requirement, floor load and dynamic load information if available
Roof and wall panel preference
Ventilation, drainage, lighting and fire coordination requirements
Stair, guardrail, walkway and access route requirements
Material grade and steel member specification
Welding, drilling, bolt connection and anchor bolt details
Surface treatment and anti-corrosion requirement
Component marking, packing method and container loading sequence
Installation drawings and technical communication points

If you already have parking equipment drawings, architectural drawings, structural drawings, or a BOQ, we can help review them from the viewpoint of fabrication, packing, shipment, and installation. If you only have land size and parking capacity target, we can help you organize what still needs to be confirmed before quotation.
