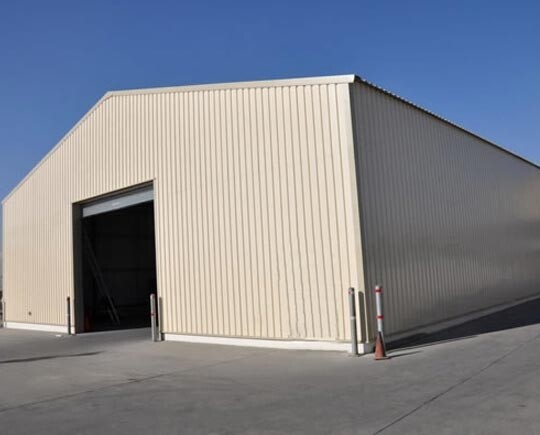

Heavy-Duty Steel Portal Frame for Industrial Warehouse and Workshop

Product Overview

A heavy-duty steel portal frame is not the same as a light storage shed. It is built for industrial buildings where strength, space, stability, and installation accuracy matter from the beginning.

For warehouses and workshops that need wider spans, higher eave height, machinery access, heavier roof or wall systems, strong wind resistance, or future expansion, the portal frame must be planned carefully. If the frame is too weak, the column spacing is wrong, the bracing is missing, or the welding and bolt-hole accuracy are not controlled, the problem will not stay on paper. It will appear during installation, daily operation, or future modification.

At Zhengcheng, we help you turn your warehouse or workshop requirement into a clear steel structure solution. We can support the main frame design coordination, welded H-beam fabrication, material selection, roof and wall system, bracing arrangement, surface treatment, export packing, and installation communication. Our goal is to help you build an industrial space that is strong enough, practical to use, easier to install, and ready for long-term operation.

2. Core Advantages

2.1 Heavy-Duty Portal Frame for Industrial Use

The portal frame can be designed for wider spans, higher clear height, stronger wind resistance, and industrial working conditions. Compared with small light-duty buildings, this structure is more suitable for warehouses and workshops that need large open space, equipment access, material storage, and daily production movement.

2.2 Welded H-Beam Main Structure

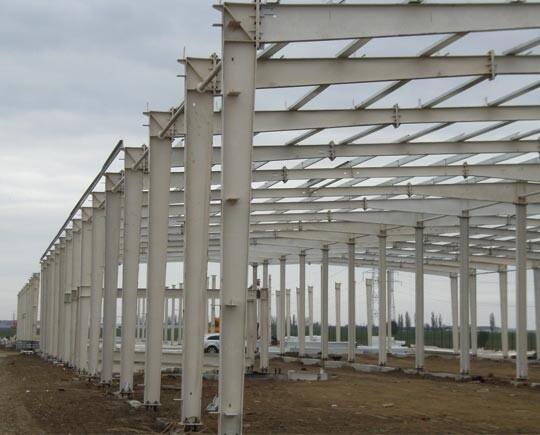

The main frame can use welded H-section steel columns and rafters. This allows the steel section to be adjusted according to span, height, load, and project requirements. For heavy-duty buildings, the advantage is clear: the frame can be planned around real working conditions instead of forcing the project into a fixed standard size.

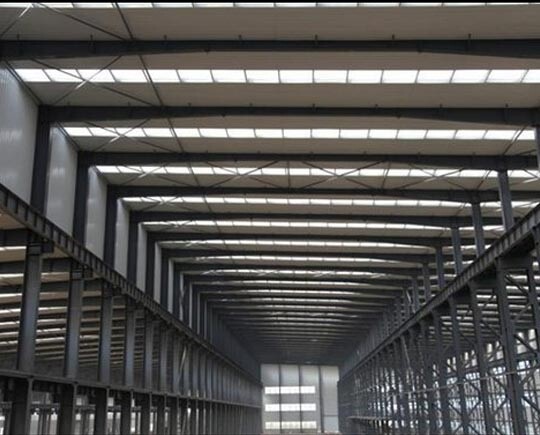

2.3 Large Clear Space for Warehouse and Workshop Layout

Industrial buildings need usable space, not just covered space. We can help plan the span, bay spacing, eave height, door position, equipment movement route, forklift access, truck entry, storage area, and possible crane or mezzanine reservation. This makes the building easier to use after installation.

2.4 Stronger Bracing and Connection System

A heavy-duty portal frame depends not only on columns and beams, but also on bracing, tie rods, purlins, bolts, anchor bolts, and connection details. We can help coordinate these details before production so the structure works as a complete system.

2.5 Better Control for Overseas Installation

For overseas projects, installation problems often come from unclear drawings, wrong marks, mixed components, missing bolts, or poor packing logic. We can provide component marking, packing lists, installation drawings, and technical communication support, so your local team can understand the structure more easily after the goods arrive.

3. Common Technical Solutions

3.1 Heavy-Duty Industrial Warehouse Frame

This solution is suitable for machinery warehouses, steel material warehouses, logistics buildings, equipment storage, spare parts warehouses, and industrial storage spaces. The structure usually includes welded H-section columns and beams, C/Z purlins, roof bracing, wall bracing, tie rods, anchor bolts, roof panels, wall panels, gutters, downpipes, and doors.

3.2 Industrial Workshop Portal Frame

For workshop use, the building must support daily production flow. We can help plan equipment zones, operation areas, storage zones, ventilation openings, lighting, door access, and possible crane-ready areas. The frame can be adjusted according to the equipment load, working space, and future production changes.

3.3 Large-Span Steel Building Solution

For projects that need fewer internal columns, the portal frame can be planned for larger clear spans. This is useful for machinery movement, truck entry, material stacking, forklift operation, and flexible space division. The final span should be checked according to load, local code, building height, and budget.

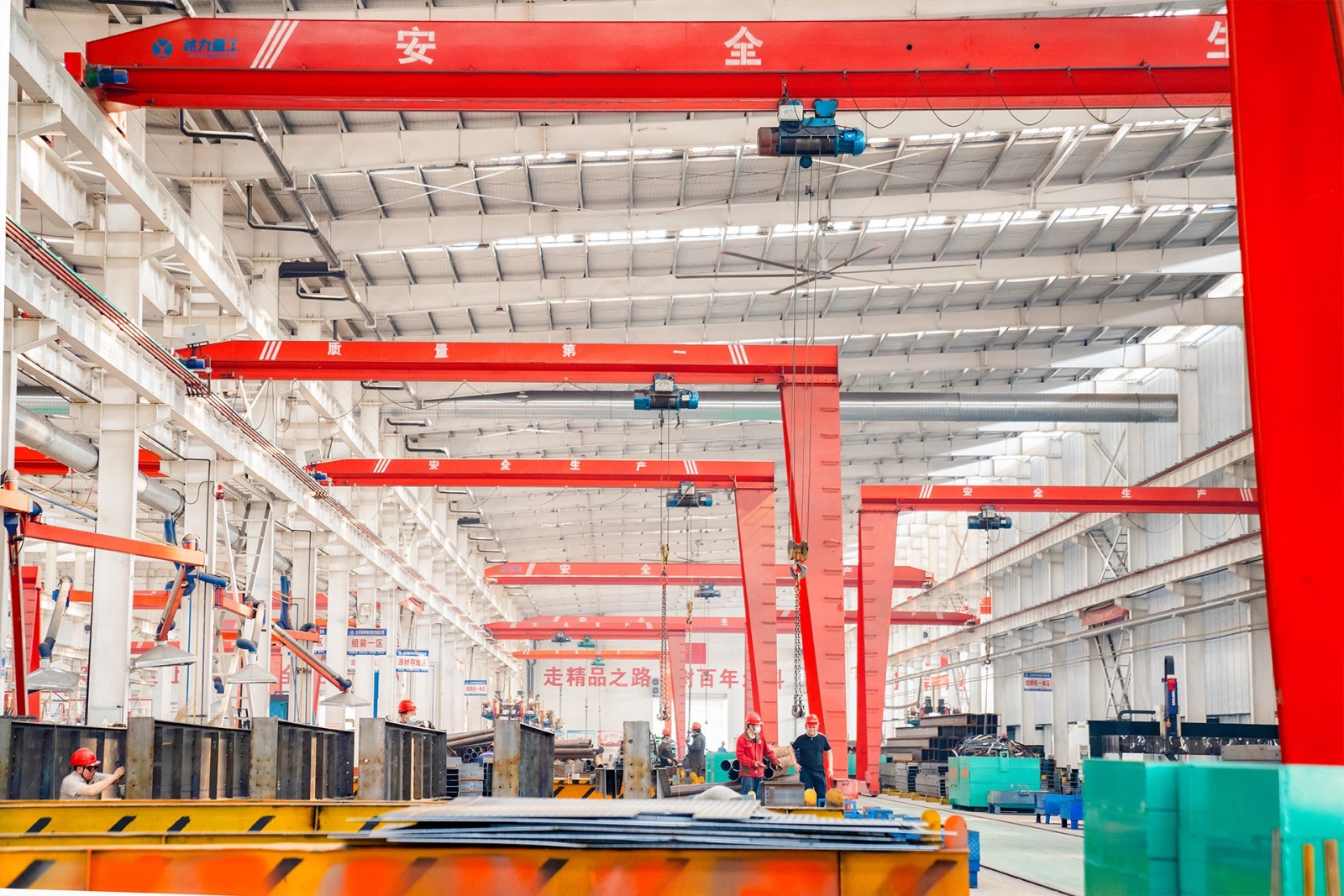

3.4 Crane-Ready Portal Frame Solution

If the workshop may need lifting equipment, we can help reserve crane beam brackets, reinforced columns, runway beam positions, and lifting routes. The crane capacity, duty class, hook height, and span should be confirmed before production, because crane loads directly affect the frame design.

3.5 High Wind Load Building Solution

For coastal, open-field, island, desert, or storm-prone areas, wind load should be discussed early. We can help coordinate stronger bracing, more suitable cladding connection, adjusted frame spacing, and proper anchor bolt design according to project requirements.

3.6 Insulated Workshop and Warehouse Solution

For hot, cold, rainy, or humid regions, the roof and wall system can use insulated panels. Rock wool, glass wool, polyurethane, or EPS sandwich panels can be selected according to temperature control, fire-performance needs, budget, and local climate.

3.7 Anti-Corrosion Steel Frame Solution

For coastal, humid, chemical, rainy, or outdoor-exposed environments, the steel members can use anti-rust painting, epoxy coating systems, or hot-dip galvanizing. The surface treatment should be selected according to corrosion level, expected service life, maintenance plan, and project budget.

3.8 Expandable Industrial Building Solution

If your warehouse or workshop may expand later, we can help reserve extension direction, removable wall sections, repeated bay spacing, and connection details. This allows the first phase to stay practical while leaving room for future growth.

Technical Support We Can Provide

Before production starts, we can help you check the key technical information that affects the final building performance. A heavy-duty warehouse in a windy coastal area is different from a workshop in an inland industrial park. A building used for machinery repair is different from a building used only for storage. A workshop with possible crane use is different from a simple warehouse.

We can help confirm the following information step by step:

Building length, width, and eave height
Clear span and column spacing
Local wind load, snow load, and seismic requirements
Roof and wall enclosure system
Door size, door quantity, and opening direction
Equipment access and internal movement route
Whether crane, mezzanine, or future expansion is needed
Material grade and steel member specification
Welding, drilling, and bolt connection details
Surface treatment and anti-corrosion requirements
Packing method, container loading, and installation sequence

If you already have drawings, we can help review the structure from the viewpoint of fabrication, shipment, and installation. If you only have a rough building size and usage idea, we can help you organize the information first and turn it into a practical starting proposal.
